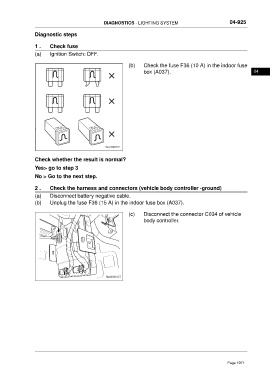

DIAGNOSTICS - LIGHTING SYSTEM                            04-925

                 Diagnostic steps

                 1 .    Check fuse

                 (a)    Ignition Switch: OFF.

                                                           (b)    Check the fuse F36 (10 A) in the indoor fuse
                                                                  box (A037).                                        04






















                 Check whether the result is normal?

                 Yes> go to step 3
                 No > Go to the next step.


                 2 .    Check the harness and connectors (vehicle body controller -ground)
                 (a)    Disconnect battery negative cable.
                 (b)    Unplug the fuse F36 (15 A) in the indoor fuse box (A037).

                                                           (c)    Disconnect the connector C034 of vehicle
                                                                  body controller.














                                                 ftwxd041027
