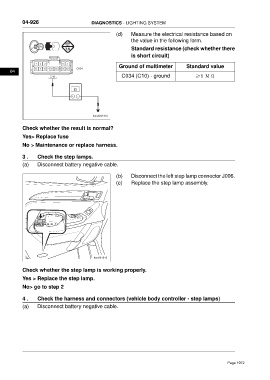

04-926 DIAGNOSTICS - LIGHTING SYSTEM

(d) Measure the electrical resistance based on
the value in the following form.
Standard resistance (check whether there
is short circuit)

Ground of multimeter Standard value
C034
04
C034 (C10) - ground ≥1 ΜΩ

ftwxd041416

Check whether the result is normal?
Yes> Replace fuse
No > Maintenance or replace harness.

3 . Check the step lamps.
(a) Disconnect battery negative cable.

(b) Disconnect the left step lamp connector J006.
(c) Replace the step lamp assembly.

ftwx881012

Check whether the step lamp is working properly.
Yes > Replace the step lamp.
No> go to step 2

4 . Check the harness and connectors (vehicle body controller - step lamps)
(a) Disconnect battery negative cable.
