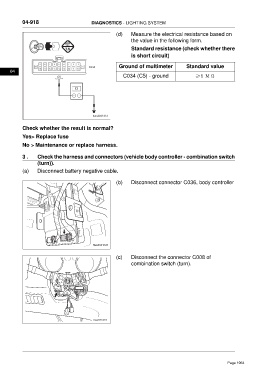

04-918                         DIAGNOSTICS - LIGHTING SYSTEM

                                                      (d)    Measure the electrical resistance based on
                                                             the value in the following form.
                                                             Standard resistance (check whether there
                                                             is short circuit)

                                         C034          Ground of multimeter           Standard value
      04
                                                         C034 (C5) - ground               ≥1 ΜΩ









                                           ftwxd041413


           Check whether the result is normal?
           Yes> Replace fuse
           No > Maintenance or replace harness.


           3 .    Check the harness and connectors (vehicle body controller - combination switch
                  (turn)).
           (a)    Disconnect battery negative cable.

                                                      (b)    Disconnect connector C036, body controller
















                                           ftwxd041026

                                                      (c)    Disconnect the connector C008 of
                                                             combination switch (turn).














                                           ftwx641019
