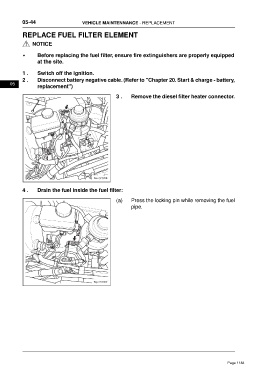

Page 1184 - Foton Workshop Manual - Tunland (AT)
P. 1184
05-44 VEHICLE MAINTENNANCE - REPLACEMENT
REPLACE FUEL FILTER ELEMENT
NOTICE
• Before replacing the fuel filter, ensure fire extinguishers are properly equipped
at the site.
1 . Switch off the ignition.
2 . Disconnect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
05
replacement")
3 . Remove the diesel filter heater connector.
4 . Drain the fuel inside the fuel filter:
(a) Press the locking pin while removing the fuel
pipe.
Page 1184
