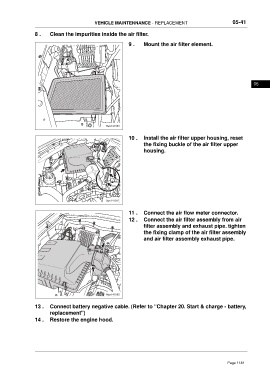

VEHICLE MAINTENNANCE - REPLACEMENT 05-41
8 . Clean the impurities inside the air filter.
9 . Mount the air filter element.
05
ftwx141003
10 . Install the air filter upper housing, reset
the fixing buckle of the air filter upper
housing.
ftwx141017
11 . Connect the air flow meter connector.
12 . Connect the air filter assembly from air
filter assembly and exhaust pipe. tighten
the fixing clamp of the air filter assembly
and air filter assembly exhaust pipe.
ftwx141005
13 . Connect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
replacement")
14 . Restore the engine hood.
