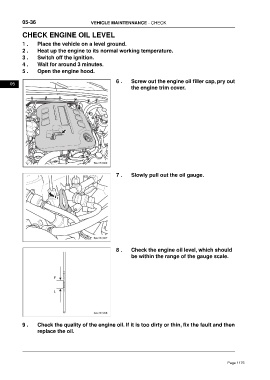

Page 1176 - Foton Workshop Manual - Tunland (AT)

05-36 VEHICLE MAINTENNANCE - CHECK

CHECK ENGINE OIL LEVEL

1 . Place the vehicle on a level ground.
2 . Heat up the engine to its normal working temperature.
3 . Switch off the ignition.
4 . Wait for around 3 minutes.
5 . Open the engine hood.
6 . Screw out the engine oil filler cap, pry out
05
the engine trim cover.

7 . Slowly pull out the oil gauge.

8 . Check the engine oil level, which should
be within the range of the gauge scale.

9 . Check the quality of the engine oil. If it is too dirty or thin, fix the fault and then
replace the oil.
