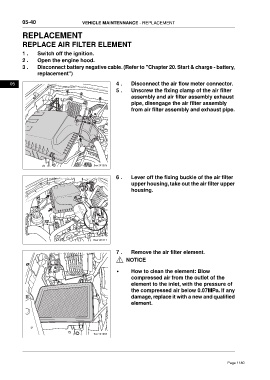

Page 1180 - Foton Workshop Manual - Tunland (AT)

05-40 VEHICLE MAINTENNANCE - REPLACEMENT

REPLACEMENT

REPLACE AIR FILTER ELEMENT
1 . Switch off the ignition.
2 . Open the engine hood.
3 . Disconnect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
replacement")

05 4 . Disconnect the air flow meter connector.
5 . Unscrew the fixing clamp of the air filter
assembly and air filter assembly exhaust
pipe, disengage the air filter assembly
from air filter assembly and exhaust pipe.

ftwx141005

6 . Lever off the fixing buckle of the air filter
upper housing, take out the air filter upper
housing.

ftwx141017

7 . Remove the air filter element.
NOTICE

• How to clean the element: Blow
compressed air from the outlet of the
element to the inlet, with the pressure of
the compressed air below 0.07MPa. If any
damage, replace it with a new and qualified
element.

ftwx141003
