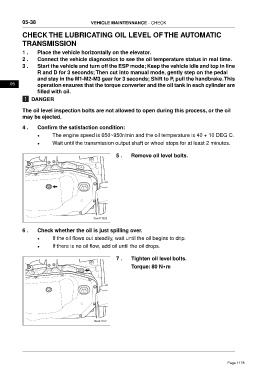

05-38 VEHICLE MAINTENNANCE - CHECK

CHECK THE LUBRICATING OIL LEVEL OF THE AUTOMATIC

TRANSMISSION
1 . Place the vehicle horizontally on the elevator.
2 . Connect the vehicle diagnostics to see the oil temperature status in real time.
3 . Start the vehicle and turn off the ESP mode; Keep the vehicle idle and top in line
R and D for 3 seconds;Then cut into manual mode, gently step on the pedal
and stay in the M1-M2-M3 gear for 3 seconds; Shift to P, pull the handbrake.This
05 operation ensures that the torque converter and the oil tank in each cylinder are
filled with oil.

DANGER

The oil level inspection bolts are not allowed to open during this process, or the oil
may be ejected.

4 . Confirm the satisfaction condition:

• The engine speed is 650~950r/min and the oil temperature is 40 + 10 DEG C.
• Wait until the transmission output shaft or wheel stops for at least 2 minutes.

5 . Remove oil level bolts.

6 . Check whether the oil is just spilling over.

• If the oil flows out steadily, wait until the oil begins to drip.
• If there is no oil flow, add oil until the oil drops.

7 . Tighten oil level bolts.

Torque: 80 N•m
