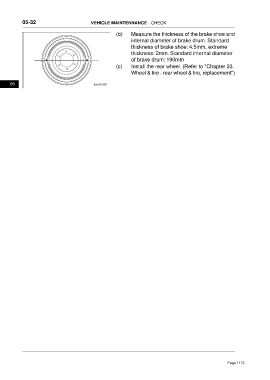

05-32 VEHICLE MAINTENNANCE - CHECK
(b) Measure the thickness of the brake shoe and
internal diameter of brake drum. Standard
thickness of brake shoe: 4.5mm, extreme
thickness: 2mm. Standard internal diameter
of brake drum: 190mm
(c) Install the rear wheel. (Refer to "Chapter 33.
Wheel & tire - rear wheel & tire, replacement")
