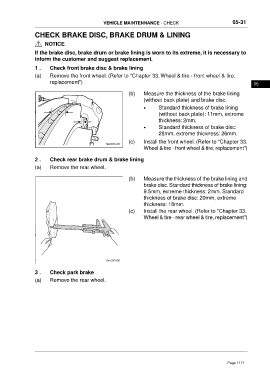

VEHICLE MAINTENNANCE - CHECK 05-31

CHECK BRAKE DISC, BRAKE DRUM & LINING

NOTICE
If the brake disc, brake drum or brake lining is worn to its extreme, it is necessary to
inform the customer and suggest replacement.

1 . Check front brake disc & brake lining
(a) Remove the front wheel. (Refer to "Chapter 33. Wheel & tire - front wheel & tire,
replacement") 05

(b) Measure the thickness of the brake lining
(without back plate) and brake disc.
• Standard thickness of brake lining
(without back plate): 11mm, extreme
thickness: 2mm.
• Standard thickness of brake disc:
28mm, extreme thickness: 26mm.

(c) Install the front wheel. (Refer to "Chapter 33.
Wheel & tire - front wheel & tire, replacement")

2 . Check rear brake drum & brake lining

(a) Remove the rear wheel.

(b) Measure the thickness of the brake lining and
brake disc. Standard thickness of brake lining:
9.5mm, extreme thickness: 2mm. Standard
thickness of brake disc: 20mm, extreme
thickness: 18mm.
(c) Install the rear wheel. (Refer to "Chapter 33.
Wheel & tire - rear wheel & tire, replacement")

3 . Check park brake
(a) Remove the rear wheel.
