Page 1242 - Foton Workshop Manual - Tunland (AT)
P. 1242

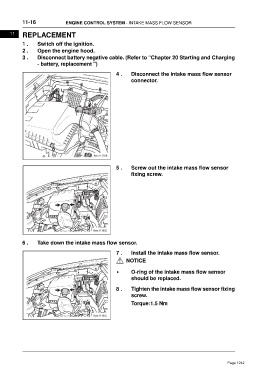

11-16 ENGINE CONTROL SYSTEM - INTAKE MASS FLOW SENSOR
11 REPLACEMENT
1 . Switch off the ignition.
2 . Open the engine hood.
3 . Disconnect battery negative cable. (Refer to "Chapter 20 Starting and Charging
- battery, replacement ")
4 . Disconnect the intake mass flow sensor
connector.
5 . Screw out the intake mass flow sensor
fixing screw.
6 . Take down the intake mass flow sensor.
7 . Install the intake mass flow sensor.
NOTICE
• O-ring of the intake mass flow sensor
should be replaced.
8 . Tighten the intake mass flow sensor fixing
screw.
Torque:1.5 Nm
