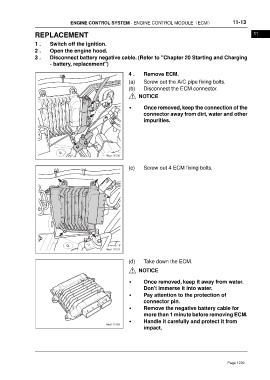

ENGINE CONTROL SYSTEM - ENGINE CONTROL MODULE（ECM） 11-13

REPLACEMENT 11

1 . Switch off the ignition.
2 . Open the engine hood.
3 . Disconnect battery negative cable. (Refer to "Chapter 20 Starting and Charging
- battery, replacement")
4 . Remove ECM.
(a) Screw out the A/C pipe fixing bolts.
(b) Disconnect the ECM connector.

NOTICE

• Once removed, keep the connection of the
connector away from dirt, water and other
impurities.

(c) Screw out 4 ECM fixing bolts.

(d) Take down the ECM.

NOTICE

• Once removed, keep it away from water.
Don't immerse it into water.
• Pay attention to the protection of
connector pin.
• Remove the negative battery cable for
more than 1 minute before removing ECM.
• Handle it carefully and protect it from
impact.
