P. 1240

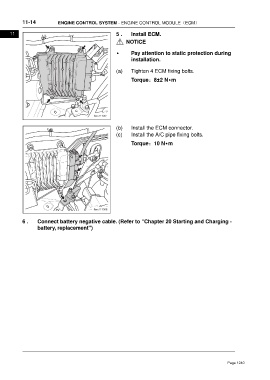

11-14 ENGINE CONTROL SYSTEM - ENGINE CONTROL MODULE（ECM）
11 5 . Install ECM.
NOTICE
• Pay attention to static protection during
installation.
(a) Tighten 4 ECM fixing bolts.
Torque：8±2 N•m
(b) Install the ECM connector.
(c) Install the A/C pipe fixing bolts.
Torque：10 N•m
6 . Connect battery negative cable. (Refer to "Chapter 20 Starting and Charging -
battery, replacement")
