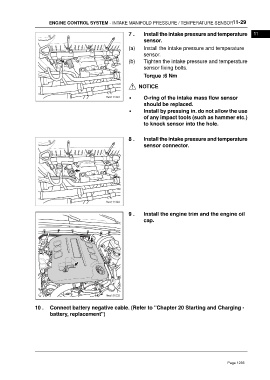

Page 1255 - Foton Workshop Manual - Tunland (AT)

ENGINE CONTROL SYSTEM - INTAKE MANIFOLD PRESSURE / TEMPERATURE SENSOR11-29

7 . Install the intake pressure and temperature 11
sensor.
(a) Install the intake pressure and temperature
sensor.
(b) Tighten the intake pressure and temperature
sensor fixing bolts.
Torque :6 Nm

NOTICE

• O-ring of the intake mass flow sensor
should be replaced.
• Install by pressing in. do not allow the use
of any impact tools (such as hammer etc.)
to knock sensor into the hole.

8 . Install the intake pressure and temperature
sensor connector.

9 . Install the engine trim and the engine oil
cap.

10 . Connect battery negative cable. (Refer to "Chapter 20 Starting and Charging -
battery, replacement")

Page 1255
