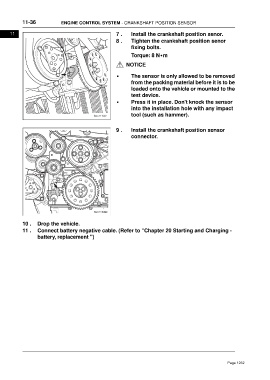

Page 1262 - Foton Workshop Manual - Tunland (AT)

11-36 ENGINE CONTROL SYSTEM - CRANKSHAFT POSITION SENSOR

11 7 . Install the crankshaft position senor.
8 . Tighten the crankshaft position senor
fixing bolts.
Torque: 8 N•m

NOTICE

• The sensor is only allowed to be removed
from the packing material before it is to be
loaded onto the vehicle or mounted to the
test device.
• Press it in place. Don't knock the sensor
into the installation hole with any impact
tool (such as hammer).

9 . Install the crankshaft position sensor
connector.

10 . Drop the vehicle.
11 . Connect battery negative cable. (Refer to "Chapter 20 Starting and Charging -
battery, replacement ")
