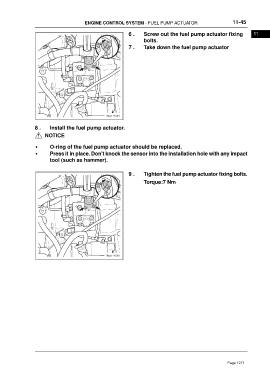

ENGINE CONTROL SYSTEM - FUEL PUMP ACTUATOR 11-45
6 . Screw out the fuel pump actuator fixing 11
bolts.
7 . Take down the fuel pump actuator
8 . Install the fuel pump actuator.
NOTICE
• O-ring of the fuel pump actuator should be replaced.
• Press it in place. Don't knock the sensor into the installation hole with any impact
tool (such as hammer).
9 . Tighten the fuel pump actuator fixing bolts.
Torque:7 Nm
