Page 1276 - Foton Workshop Manual - Tunland (AT)
P. 1276

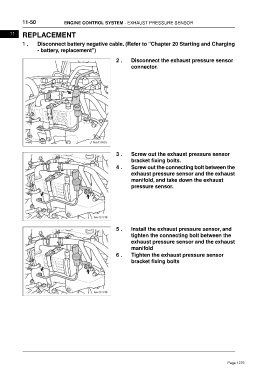

11-50 ENGINE CONTROL SYSTEM - EXHAUST PRESSURE SENSOR
11 REPLACEMENT
1 . Disconnect battery negative cable. (Refer to "Chapter 20 Starting and Charging
- battery, replacement")
2 . Disconnect the exhaust pressure sensor
connector.
3 . Screw out the exhaust pressure sensor
bracket fixing bolts.
4 . Screw out the connecting bolt between the
exhaust pressure sensor and the exhaust
manifold, and take down the exhaust
pressure sensor.
5 . Install the exhaust pressure sensor, and
tighten the connecting bolt between the
exhaust pressure sensor and the exhaust
manifold
6 . Tighten the exhaust pressure sensor
bracket fixing bolts
Page 1276
