ENGINE CONTROL SYSTEM - POSTPROCESSING PREHEAT DIESEL OXIDATION CATALYST INLET
           AND OUTLET TEMPERATURE SENSOR/ POSTPROCESSING DIESEL PARTICULATE FILTER(DPF) INLET
           11-54                         AND OUTLET TEMPERATURE SENSOR

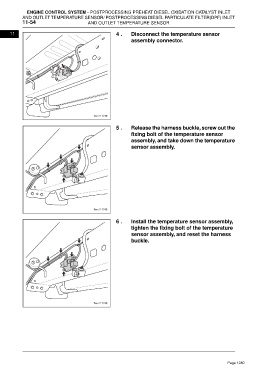

      11                                              4 .    Disconnect the temperature sensor
                                                             assembly connector.























                                                      5 .    Release the harness buckle, screw out the
                                                             fixing bolt of the temperature sensor
                                                             assembly, and take down the temperature
                                                             sensor assembly.



















                                                      6 .    Install the temperature sensor assembly,
                                                             tighten the fixing bolt of the temperature
                                                             sensor assembly, and reset the harness
                                                             buckle.
