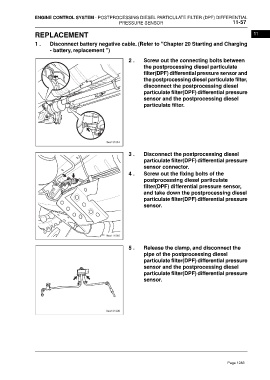

ENGINE CONTROL SYSTEM - POSTPROCESSING DIESEL PARTICULATE FILTER (DPF) DIFFERENTIAL
                                                       PRESSURE SENSOR                                     11-57

                 REPLACEMENT                                                                                         11

                 1 .    Disconnect battery negative cable. (Refer to "Chapter 20 Starting and Charging
                        - battery, replacement ")
                                                           2 .    Screw out the connecting bolts between
                                                                  the postprocessing diesel particulate
                                                                  filter(DPF) differential pressure sensor and
                                                                  the postprocessing diesel particulate filter,
                                                                  disconnect the postprocessing diesel
                                                                  particulate filter(DPF) differential pressure
                                                                  sensor and the postprocessing diesel
                                                                  particulate filter.












                                                           3 .    Disconnect the postprocessing diesel
                                                                  particulate filter(DPF) differential pressure
                                                                  sensor connector.
                                                           4 .    Screw out the fixing bolts of the
                                                                  postprocessing diesel particulate
                                                                  filter(DPF) differential pressure sensor,
                                                                  and take down the postprocessing diesel
                                                                  particulate filter(DPF) differential pressure
                                                                  sensor.










                                                           5 .    Release the clamp, and disconnect the
                                                                  pipe of the postprocessing diesel
                                                                  particulate filter(DPF) differential pressure
                                                                  sensor and the postprocessing diesel
                                                                  particulate filter(DPF) differential pressure
                                                                  sensor.
