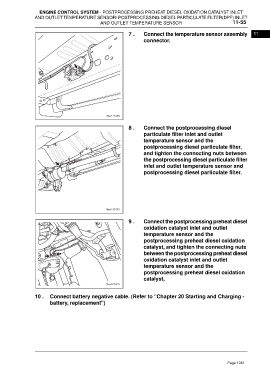

ENGINE CONTROL SYSTEM - POSTPROCESSING PREHEAT DIESEL OXIDATION CATALYST INLET
                 AND OUTLET TEMPERATURE SENSOR/ POSTPROCESSING DIESEL PARTICULATE FILTER(DPF) INLET
                                               AND OUTLET TEMPERATURE SENSOR                               11-55

                                                           7 .    Connect the temperature sensor assembly   11
                                                                  connector.























                                                           8 .    Connect the postprocessing diesel
                                                                  particulate filter inlet and outlet
                                                                  temperature sensor and the
                                                                  postprocessing diesel particulate filter,
                                                                  and tighten the connecting nuts between
                                                                  the postprocessing diesel particulate filter
                                                                  inlet and outlet temperature sensor and
                                                                  postprocessing diesel particulate filter.












                                                           9 .    Connect the postprocessing preheat diesel
                                                                  oxidation catalyst inlet and outlet
                                                                  temperature sensor and the
                                                                  postprocessing preheat diesel oxidation
                                                                  catalyst, and tighten the connecting nuts
                                                                  between the postprocessing preheat diesel
                                                                  oxidation catalyst inlet and outlet
                                                                  temperature sensor and the
                                                                  postprocessing preheat diesel oxidation
                                                                  catalyst,



                 10 .   Connect battery negative cable. (Refer to "Chapter 20 Starting and Charging -
                        battery, replacement")
