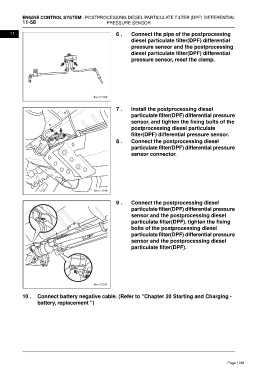

ENGINE CONTROL SYSTEM - POSTPROCESSING DIESEL PARTICULATE FILTER (DPF) DIFFERENTIAL
11-58 PRESSURE SENSOR

11 6 . Connect the pipe of the postprocessing
diesel particulate filter(DPF) differential
pressure sensor and the postprocessing
diesel particulate filter(DPF) differential
pressure sensor, reset the clamp.

7 . Install the postprocessing diesel
particulate filter(DPF) differential pressure
sensor, and tighten the fixing bolts of the
postprocessing diesel particulate
filter(DPF) differential pressure sensor.
8 . Connect the postprocessing diesel
particulate filter(DPF) differential pressure
sensor connector.

9 . Connect the postprocessing diesel
particulate filter(DPF) differential pressure
sensor and the postprocessing diesel
particulate filter(DPF), tighten the fixing
bolts of the postprocessing diesel
particulate filter(DPF) differential pressure
sensor and the postprocessing diesel
particulate filter(DPF).

10 . Connect battery negative cable. (Refer to "Chapter 20 Starting and Charging -
battery, replacement ")
