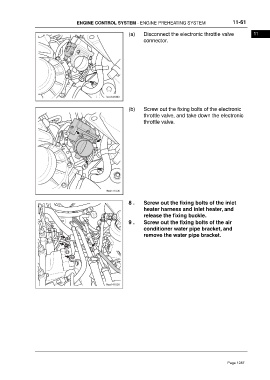

ENGINE CONTROL SYSTEM - ENGINE PREHEATING SYSTEM                       11-61

                                                           (a)    Disconnect the electronic throttle valve           11
                                                                  connector.

















                                                           (b)    Screw out the fixing bolts of the electronic
                                                                  throttle valve, and take down the electronic
                                                                  throttle valve.





















                                                           8 .    Screw out the fixing bolts of the inlet
                                                                  heater harness and inlet heater, and
                                                                  release the fixing buckle.
                                                           9 .    Screw out the fixing bolts of the air
                                                                  conditioner water pipe bracket, and
                                                                  remove the water pipe bracket.
