P. 1290

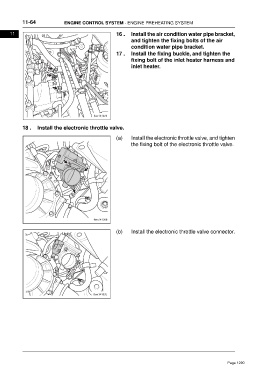

11-64 ENGINE CONTROL SYSTEM - ENGINE PREHEATING SYSTEM
11 16 . Install the air condition water pipe bracket,
and tighten the fixing bolts of the air
condition water pipe bracket.
17 . Install the fixing buckle, and tighten the
fixing bolt of the inlet heater harness and
inlet heater.
ftwx141026
18 . Install the electronic throttle valve.
(a) Install the electronic throttle valve, and tighten
the fixing bolt of the electronic throttle valve.
(b) Install the electronic throttle valve connector.
