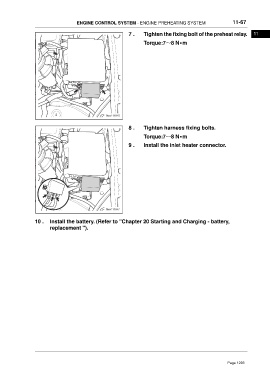

ENGINE CONTROL SYSTEM - ENGINE PREHEATING SYSTEM                       11-67

                                                           7 .    Tighten the fixing bolt of the preheat relay.   11

                                                                  Torque:7～8 N•m






















                                                           8 .    Tighten harness fixing bolts.
                                                                  Torque:7～8 N•m
                                                           9 .    Install the inlet heater connector.




















                 10 .   Install the battery. (Refer to "Chapter 20 Starting and Charging - battery,
                        replacement ").
