Page 1292 - Foton Workshop Manual - Tunland (AT)
P. 1292

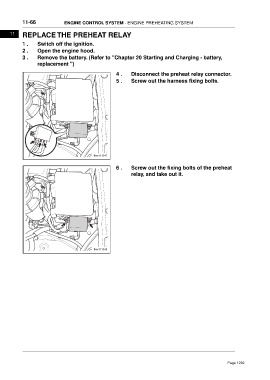

11-66 ENGINE CONTROL SYSTEM - ENGINE PREHEATING SYSTEM
11 REPLACE THE PREHEAT RELAY
1 . Switch off the ignition.
2 . Open the engine hood.
3 . Remove the battery. (Refer to "Chapter 20 Starting and Charging - battery,
replacement ")
4 . Disconnect the preheat relay connector.
5 . Screw out the harness fixing bolts.
6 . Screw out the fixing bolts of the preheat
relay, and take out it.
Page 1292
