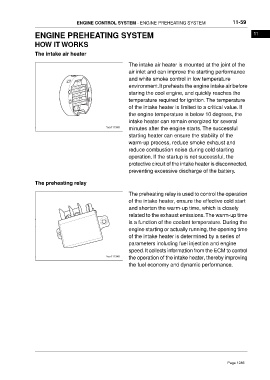

ENGINE CONTROL SYSTEM - ENGINE PREHEATING SYSTEM                       11-59

                 ENGINE PREHEATING SYSTEM                                                                            11

                 HOW IT WORKS

                 The intake air heater

                                                           The intake air heater is mounted at the joint of the
                                                           air inlet and can improve the starting performance
                                                           and white smoke control in low temperature
                                                           environment.It preheats the engine intake air before
                                                           staring the cool engine, and quickly reaches the
                                                           temperature required for ignition. The temperature
                                                           of the intake heater is limited to a critical value. If
                                                           the engine temperature is below 10 degrees, the
                                                           intake heater can remain energized for several
                                                           minutes after the engine starts. The successful
                                                           starting heater can ensure the stability of the
                                                           warm-up process, reduce smoke exhaust and
                                                           reduce combustion noise during cold starting
                                                           operation. If the startup is not successful, the
                                                           protective circuit of the intake heater is disconnected,
                                                           preventing excessive discharge of the battery.

                 The preheating relay

                                                           The preheating relay is used to control the operation
                                                           of the intake heater, ensure the effective cold start
                                                           and shorten the warm-up time, which is closely
                                                           related to the exhaust emissions.The warm-up time
                                                           is a function of the coolant temperature. During the
                                                           engine starting or actually running, the opening time
                                                           of the intake heater is determined by a series of
                                                           parameters including fuel injection and engine
                                                           speed. It collects information from the ECM to control
                                                           the operation of the intake heater, thereby improving
                                                           the fuel economy and dynamic performance.
