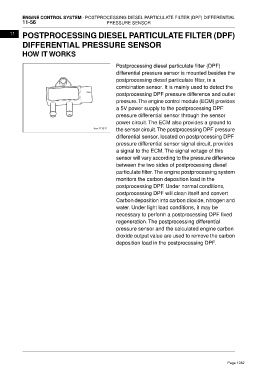

ENGINE CONTROL SYSTEM - POSTPROCESSING DIESEL PARTICULATE FILTER (DPF) DIFFERENTIAL
           11-56                                 PRESSURE SENSOR

      11
           POSTPROCESSING DIESEL PARTICULATE FILTER (DPF)
           DIFFERENTIAL PRESSURE SENSOR
           HOW IT WORKS


                                                      Postprocessing diesel particulate filter (DPF)
                                                      differential pressure sensor is mounted besides the
                                                      postprocessing diesel particulate filter, is a
                                                      combination sensor. It is mainly used to detect the
                                                      postprocessing DPF pressure difference and outlet
                                                      pressure.The engine control module (ECM) provides
                                                      a 5V power supply to the postprocessing DPF
                                                      pressure differential sensor through the sensor
                                                      power circuit. The ECM also provides a ground to
                                                      the sensor circuit.The postprocessing DPF pressure
                                                      differential sensor, located on postprocessing DPF
                                                      pressure differential sensor signal circuit, provides
                                                      a signal to the ECM. The signal voltage of this
                                                      sensor will vary according to the pressure difference
                                                      between the two sides of postprocessing diesel
                                                      particulate filter.The engine postprocessing system
                                                      monitors the carbon deposition load in the
                                                      postprocessing DPF. Under normal conditions,
                                                      postprocessing DPF will clean itself and convert
                                                      Carbon deposition into carbon dioxide, nitrogen and
                                                      water. Under light load conditions, it may be
                                                      necessary to perform a postprocessing DPF fixed
                                                      regeneration. The postprocessing differential
                                                      pressure sensor and the calculated engine carbon
                                                      dioxide output value are used to remove the carbon
                                                      deposition load in the postprocessing DPF.
