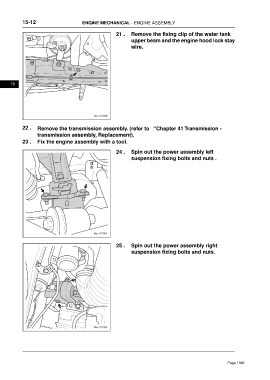

Page 1386 - Foton Workshop Manual - Tunland (AT)
P. 1386
15-12 ENGINE MECHANICAL - ENGINE ASSEMBLY
21 . Remove the fixing clip of the water tank
upper beam and the engine hood lock stay
wire.
15
22 . Remove the transmission assembly. (refer to “Chapter 41 Transmission -
transmission assembly, Replacement).
23 . Fix the engine assembly with a tool.
24 . Spin out the power assembly left
suspension fixing bolts and nuts .
25 . Spin out the power assembly right
suspension fixing bolts and nuts.
Page 1386
