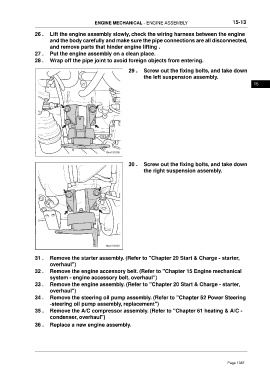

ENGINE MECHANICAL - ENGINE ASSEMBLY 15-13

26 . Lift the engine assembly slowly, check the wiring harness between the engine
and the body carefully and make sure the pipe connections are all disconnected,
and remove parts that hinder engine lifting .
27 . Put the engine assembly on a clean place.
28 . Wrap off the pipe joint to avoid foreign objects from entering.

29 . Screw out the fixing bolts, and take down
the left suspension assembly.
15

30 . Screw out the fixing bolts, and take down
the right suspension assembly.

31 . Remove the starter assembly. (Refer to "Chapter 20 Start & Charge - starter,
overhaul")
32 . Remove the engine accessory belt. (Refer to "Chapter 15 Engine mechanical
system - engine accessory belt, overhaul")
33 . Remove the engine assembly. (Refer to "Chapter 20 Start & Charge - starter,
overhaul")
34 . Remove the steering oil pump assembly. (Refer to "Chapter 52 Power Steering
-steering oil pump assembly, replacement")
35 . Remove the A/C compressor assembly. (Refer to "Chapter 61 heating & A/C -
condenser, overhaul")
36 . Replace a new engine assembly.
