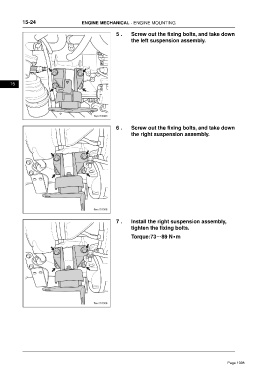

15-24                      ENGINE MECHANICAL - ENGINE MOUNTING

                                                      5 .    Screw out the fixing bolts, and take down
                                                             the left suspension assembly.










      15











                                                      6 .    Screw out the fixing bolts, and take down
                                                             the right suspension assembly.























                                                      7 .    Install the right suspension assembly,
                                                             tighten the fixing bolts.
                                                             Torque:73～89 N•m
