15-32 ENGINE MECHANICAL - TIMING DEVICE

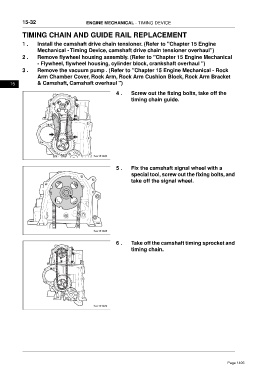

TIMING CHAIN AND GUIDE RAIL REPLACEMENT

1 . Install the camshaft drive chain tensioner. (Refer to "Chapter 15 Engine
Mechanical - Timing Device, camshaft drive chain tensioner overhaul")
2 . Remove flywheel housing assembly. (Refer to "Chapter 15 Engine Mechanical
- Flywheel, flywheel housing, cylinder block, crankshaft overhaul ")
3 . Remove the vacuum pump . (Refer to "Chapter 15 Engine Mechanical - Rock
Arm Chamber Cover, Rock Arm, Rock Arm Cushion Block, Rock Arm Bracket
15 & Camshaft, Camshaft overhaul ")

4 . Screw out the fixing bolts, take off the
timing chain guide.

5 . Fix the camshaft signal wheel with a
special tool, screw out the fixing bolts, and
take off the signal wheel.

6 . Take off the camshaft timing sprocket and
timing chain.
