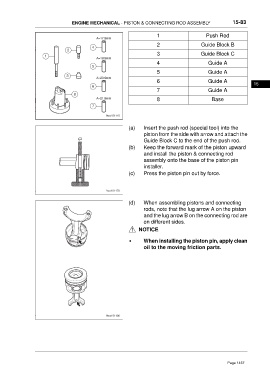

ENGINE MECHANICAL - PISTON & CONNECTING ROD ASSEMBLY 15-83

1 Push Rod
2 Guide Block B

3 Guide Block C
4 Guide A

5 Guide A
6 Guide A
15
7 Guide A

8 Base

(a) Insert the push rod (special tool) into the
piston from the side with arrow and attach the
Guide Block C to the end of the push rod.
(b) Keep the forward mark of the piston upward
and install the piston & connecting rod
assembly onto the base of the piston pin
installer.
(c) Press the piston pin out by force.

(d) When assembling pistons and connecting
rods, note that the lug arrow A on the piston
and the lug arrow B on the connecting rod are
on different sides.
NOTICE

• When installing the piston pin, apply clean
oil to the moving friction parts.
