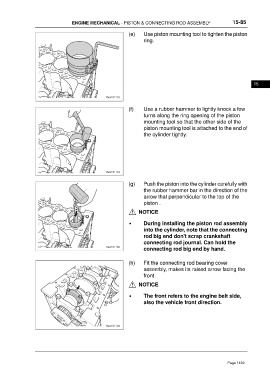

ENGINE MECHANICAL - PISTON & CONNECTING ROD ASSEMBLY 15-85

(e) Use piston mounting tool to tighten the piston
ring.

15

(f) Use a rubber hammer to lightly knock a few
turns along the ring opening of the piston
mounting tool so that the other side of the
piston mounting tool is attached to the end of
the cylinder tightly.

(g) Push the piston into the cylinder carefully with
the rubber hammer bar in the direction of the
arrow that perpendicular to the top of the
piston .
NOTICE

• During installing the piston rod assembly
into the cylinder, note that the connecting
rod big end don't scrap crankshaft
connecting rod journal. Can hold the
connecting rod big end by hand.

(h) Fit the connecting rod bearing cover
assembly, makes its raised arrow facing the
front.

NOTICE

• The front refers to the engine belt side,
also the vehicle front direction.
