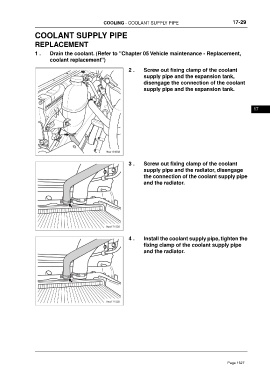

COOLING - COOLANT SUPPLY PIPE 17-29
COOLANT SUPPLY PIPE
REPLACEMENT
1 . Drain the coolant. (Refer to "Chapter 05 Vehicle maintenance - Replacement,
coolant replacement")
2 . Screw out fixing clamp of the coolant
supply pipe and the expansion tank,
disengage the connection of the coolant
supply pipe and the expansion tank.
17
3 . Screw out fixing clamp of the coolant
supply pipe and the radiator, disengage
the connection of the coolant supply pipe
and the radiator.
4 . Install the coolant supply pipe, tighten the
fixing clamp of the coolant supply pipe
and the radiator.
