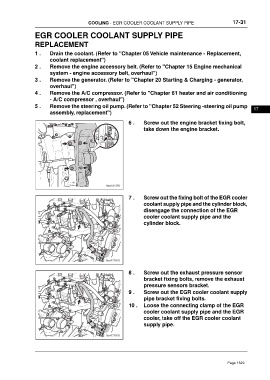

COOLING - EGR COOLER COOLANT SUPPLY PIPE 17-31

EGR COOLER COOLANT SUPPLY PIPE

REPLACEMENT
1 . Drain the coolant. (Refer to "Chapter 05 Vehicle maintenance - Replacement,
coolant replacement")
2 . Remove the engine accessory belt. (Refer to "Chapter 15 Engine mechanical
system - engine accessory belt, overhaul")
3 . Remove the generator. (Refer to "Chapter 20 Starting & Charging - generator,
overhaul")
4 . Remove the A/C compressor. (Refer to "Chapter 61 heater and air conditioning
- A/C compressor , overhaul")
5 . Remove the steering oil pump. (Refer to "Chapter 52 Steering -steering oil pump
17
assembly, replacement")
6 . Screw out the engine bracket fixing bolt,
take down the engine bracket.

7 . Screw out the fixing bolt of the EGR cooler
coolant supply pipe and the cylinder block,
disengage the connection of the EGR
cooler coolant supply pipe and the
cylinder block.

8 . Screw out the exhaust pressure sensor
bracket fixing bolts, remove the exhaust
pressure sensors bracket.
9 . Screw out the EGR cooler coolant supply
pipe bracket fixing bolts.
10 . Loose the connecting clamp of the EGR
cooler coolant supply pipe and the EGR
cooler, take off the EGR cooler coolant
supply pipe.
