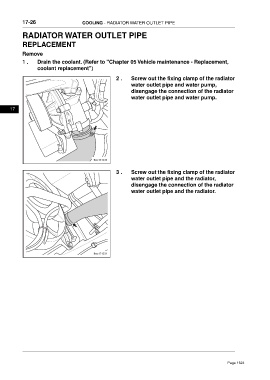

17-26 COOLING - RADIATOR WATER OUTLET PIPE
RADIATOR WATER OUTLET PIPE
REPLACEMENT
Remove
1 . Drain the coolant. (Refer to "Chapter 05 Vehicle maintenance - Replacement,
coolant replacement")
2 . Screw out the fixing clamp of the radiator
water outlet pipe and water pump,
disengage the connection of the radiator
water outlet pipe and water pump.
17
3 . Screw out the fixing clamp of the radiator
water outlet pipe and the radiator,
disengage the connection of the radiator
water outlet pipe and the radiator.
