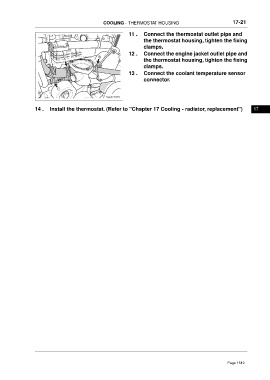

COOLING - THERMOSTAT HOUSING 17-21
11 . Connect the thermostat outlet pipe and
the thermostat housing, tighten the fixing
clamps.
12 . Connect the engine jacket outlet pipe and
the thermostat housing, tighten the fixing
clamps.
13 . Connect the coolant temperature sensor
connector.
14 . Install the thermostat. (Refer to "Chapter 17 Cooling - radiator, replacement") 17
