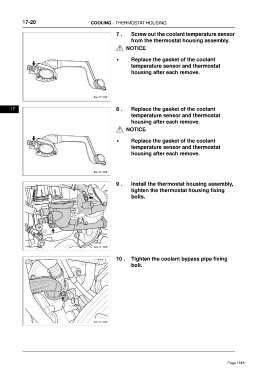

17-20 COOLING - THERMOSTAT HOUSING
7 . Screw out the coolant temperature sensor
from the thermostat housing assembly.
NOTICE
• Replace the gasket of the coolant
temperature sensor and thermostat
housing after each remove.
17 8 . Replace the gasket of the coolant
temperature sensor and thermostat
housing after each remove.
NOTICE
• Replace the gasket of the coolant
temperature sensor and thermostat
housing after each remove.
9 . Install the thermostat housing assembly,
tighten the thermostat housing fixing
bolts.
10 . Tighten the coolant bypass pipe fixing
bolt.
