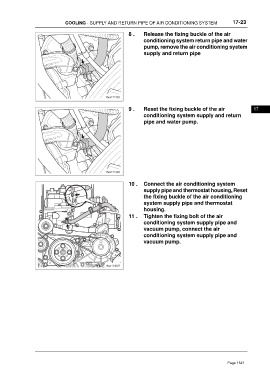

COOLING - SUPPLY AND RETURN PIPE OF AIR CONDITIONING SYSTEM 17-23
8 . Release the fixing buckle of the air
conditioning system return pipe and water
pump, remove the air conditioning system
supply and return pipe
9 . Reset the fixing buckle of the air 17
conditioning system supply and return
pipe and water pump.
10 . Connect the air conditioning system
supply pipe and thermostat housing, Reset
the fixing buckle of the air conditioning
system supply pipe and thermostat
housing.
11 . Tighten the fixing bolt of the air
conditioning system supply pipe and
vacuum pump, connect the air
conditioning system supply pipe and
vacuum pump.
