P. 1561

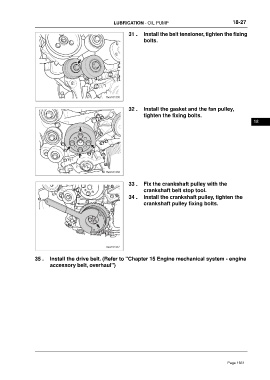

LUBRICATION - OIL PUMP 18-27
31 . Install the belt tensioner, tighten the fixing
bolts.
32 . Install the gasket and the fan pulley,
tighten the fixing bolts.
18
33 . Fix the crankshaft pulley with the
crankshaft belt stop tool.
34 . Install the crankshaft pulley, tighten the
crankshaft pulley fixing bolts.
35 . Install the drive belt. (Refer to "Chapter 15 Engine mechanical system - engine
accessory belt, overhaul")
Page 1561
