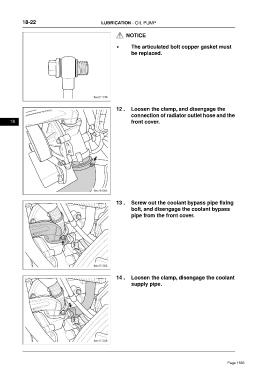

18-22 LUBRICATION - OIL PUMP
NOTICE
• The articulated bolt copper gasket must
be replaced.
12 . Loosen the clamp, and disengage the
connection of radiator outlet hose and the
18 front cover.
13 . Screw out the coolant bypass pipe fixing
bolt, and disengage the coolant bypass
pipe from the front cover.
14 . Loosen the clamp, disengage the coolant
supply pipe.
