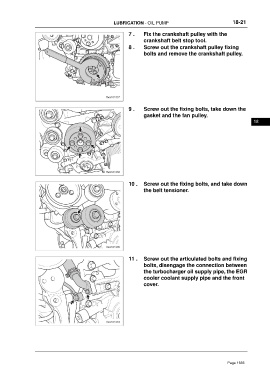

LUBRICATION - OIL PUMP 18-21
7 . Fix the crankshaft pulley with the
crankshaft belt stop tool.
8 . Screw out the crankshaft pulley fixing
bolts and remove the crankshaft pulley.
9 . Screw out the fixing bolts, take down the
gasket and the fan pulley.
18
10 . Screw out the fixing bolts, and take down
the belt tensioner.
11 . Screw out the articulated bolts and fixing
bolts, disengage the connection between
the turbocharger oil supply pipe, the EGR
cooler coolant supply pipe and the front
cover.
