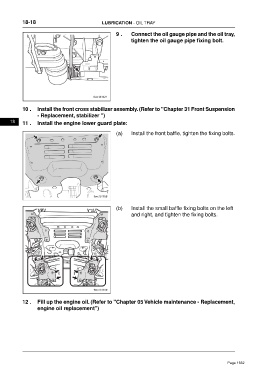

Page 1552 - Foton Workshop Manual - Tunland (AT)

18-18 LUBRICATION - OIL TRAY

9 . Connect the oil gauge pipe and the oil tray,
tighten the oil gauge pipe fixing bolt.

10 . Install the front cross stabilizer assembly. (Refer to "Chapter 31 Front Suspension
- Replacement, stabilizer ")
18 11 . Install the engine lower guard plate:

(a) Install the front baffle, tighten the fixing bolts.

(b) Install the small baffle fixing bolts on the left
and right, and tighten the fixing bolts.

12 . Fill up the engine oil. (Refer to "Chapter 05 Vehicle maintenance - Replacement,
engine oil replacement")
