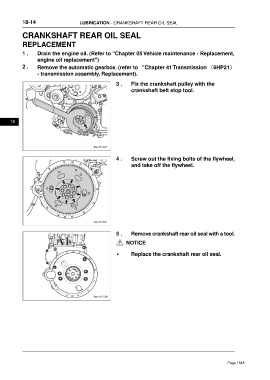

18-14                     LUBRICATION - CRANKSHAFT REAR OIL SEAL

           CRANKSHAFT REAR OIL SEAL

           REPLACEMENT
           1 .    Drain the engine oil. (Refer to "Chapter 05 Vehicle maintenance - Replacement,
                  engine oil replacement")
           2 .    Remove the automatic gearbox. (refer to “Chapter 41 Transmission （6HP21）
                  - transmission assembly, Replacement).

                                                      3 .    Fix the crankshaft pulley with the
                                                             crankshaft belt stop tool.







      18








                                                      4 .    Screw out the fixing bolts of the flywheel,
                                                             and take off the flywheel.


















                                                      5 .    Remove crankshaft rear oil seal with a tool.
                                                           NOTICE

                                                      •      Replace the crankshaft rear oil seal.
