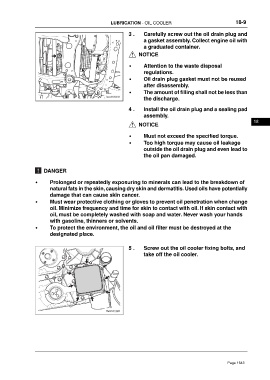

LUBRICATION - OIL COOLER 18-9

3 . Carefully screw out the oil drain plug and
a gasket assembly. Collect engine oil with
a graduated container.
NOTICE

• Attention to the waste disposal
regulations.
• Oil drain plug gasket must not be reused
after disassembly.
• The amount of filling shall not be less than
the discharge.

4 . Install the oil drain plug and a sealing pad
assembly.
18
NOTICE

• Must not exceed the specified torque.
• Too high torque may cause oil leakage
outside the oil drain plug and even lead to
the oil pan damaged.

DANGER

• Prolonged or repeatedly exposuring to minerals can lead to the breakdown of
natural fats in the skin, causing dry skin and dermatitis. Used oils have potentially
damage that can cause skin cancer.

• Must wear protective clothing or gloves to prevent oil penetration when change
oil. Minimize frequency and time for skin to contact with oil. If skin contact with
oil, must be completely washed with soap and water. Never wash your hands
with gasoline, thinners or solvents.
• To protect the environment, the oil and oil filter must be destroyed at the
designated place.

5 . Screw out the oil cooler fixing bolts, and
take off the oil cooler.
