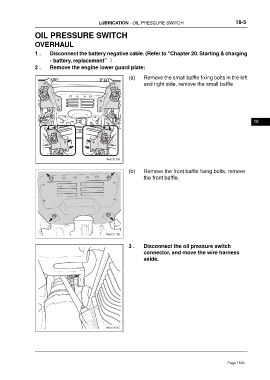

LUBRICATION - OIL PRESSURE SWITCH 18-5
OIL PRESSURE SWITCH
OVERHAUL
1 . Disconnect the battery negative cable. (Refer to "Chapter 20. Starting & charging
- battery, replacement”）
2 . Remove the engine lower guard plate:
(a) Remove the small baffle fixing bolts in the left
and right side, remove the small baffle.
18
(b) Remove the front baffle fixing bolts, remove
the front baffle.
3 . Disconnect the oil pressure switch
connector, and move the wire harness
aside.
