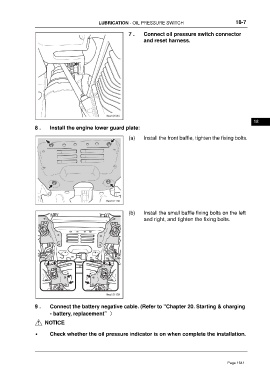

LUBRICATION - OIL PRESSURE SWITCH 18-7
7 . Connect oil pressure switch connector
and reset harness.
18
8 . Install the engine lower guard plate:
(a) Install the front baffle, tighten the fixing bolts.
(b) Install the small baffle fixing bolts on the left
and right, and tighten the fixing bolts.
9 . Connect the battery negative cable. (Refer to "Chapter 20. Starting & charging
- battery, replacement”）
NOTICE
• Check whether the oil pressure indicator is on when complete the installation.
