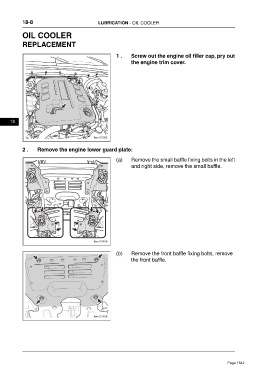

18-8 LUBRICATION - OIL COOLER
OIL COOLER
REPLACEMENT
1 . Screw out the engine oil filler cap, pry out
the engine trim cover.
18
2 . Remove the engine lower guard plate:
(a) Remove the small baffle fixing bolts in the left
and right side, remove the small baffle.
(b) Remove the front baffle fixing bolts, remove
the front baffle.
