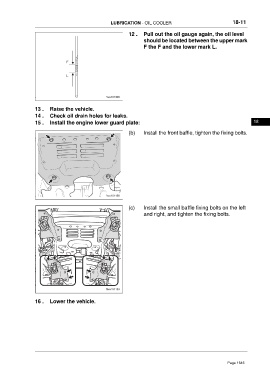

LUBRICATION - OIL COOLER 18-11
12 . Pull out the oil gauge again, the oil level
should be located between the upper mark
F the F and the lower mark L.
13 . Raise the vehicle.
14 . Check oil drain holes for leaks.
15 . Install the engine lower guard plate: 18
(b) Install the front baffle, tighten the fixing bolts.
(c) Install the small baffle fixing bolts on the left
and right, and tighten the fixing bolts.
16 . Lower the vehicle.
