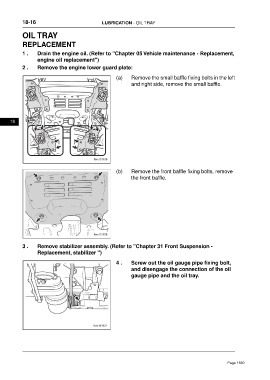

18-16 LUBRICATION - OIL TRAY
OIL TRAY
REPLACEMENT
1 . Drain the engine oil. (Refer to "Chapter 05 Vehicle maintenance - Replacement,
engine oil replacement")
2 . Remove the engine lower guard plate:
(a) Remove the small baffle fixing bolts in the left
and right side, remove the small baffle.
18
(b) Remove the front baffle fixing bolts, remove
the front baffle.
3 . Remove stabilizer assembly. (Refer to "Chapter 31 Front Suspension -
Replacement, stabilizer ")
4 . Screw out the oil gauge pipe fixing bolt,
and disengage the connection of the oil
gauge pipe and the oil tray.
